At Angel Aviation, we believe that understanding your instruments isn’t just about checkride prep — it’s your lifeline in IMC. When the horizon disappears and you’re flying by reference to instruments alone, the integrity of your flight instruments and navigation equipment is what keeps you safe, legal, and on course.

Instrument flying requires you to trust your panel — but more importantly, to understand how it works, how it can fail, and how to adapt when it does. This guide tackles ACS Area III: Flight Instruments and Area IV: Navigation Systems to help you brief with clarity and fly with confidence.

🎯 What the Examiner Is Looking For

In your oral exam and flight, the DPE will assess whether you can:

✅ Identify and describe primary flight instruments
 ✅ Explain navigation systems used in IFR operations
 ✅ Detect instrument or system failures
 ✅ Manage partial-panel scenarios and backup options
 ✅ Demonstrate working knowledge of legacy and modern avionics

Let’s dive into the systems you’ll be expected to know cold — and how to explain them like a pro.

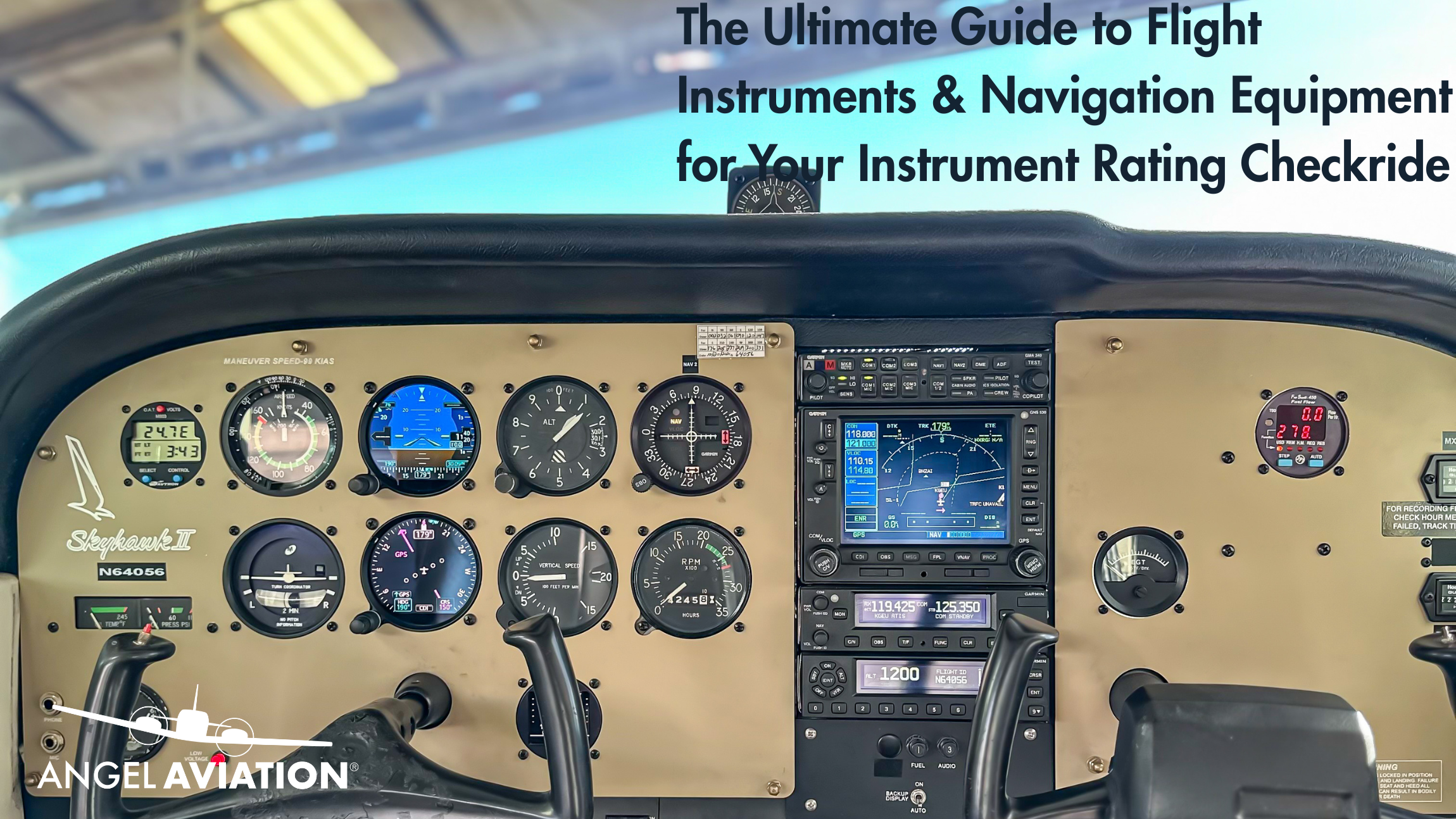

✈️ The Primary Flight Instruments

📚 Ref: FAA-H-8083-15B (IFH), PHAK, POH

Six-pack or glass, these are your core instruments for IFR:

🔹 Attitude Indicator (AI)

  • Vacuum or electric-powered

  • Primary for pitch and bank

  • Failure = rely on turn coordinator and partial-panel scanning

🔹 Heading Indicator (HI)

  • Vacuum-powered, not north-seeking

  • Needs periodic alignment with magnetic compass

  • Failure clues: precession, freezing, or tumbling

🔹 Turn Coordinator

  • Electric-powered, shows rate of turn and coordination

  • Still works if vacuum system fails — partial-panel MVP

🔹 Altimeter

  • Static-system instrument

  • Reads pressure altitude; critical for terrain and airspace

🔹 Vertical Speed Indicator (VSI)

  • Lagging instrument; good for trend info

  • Based on static pressure changes

🔹 Airspeed Indicator

  • Only instrument that uses both pitot and static

  • Crucial for maintaining IFR airspeeds (approach, climb, holding)

💡 Angel Tip: Know which instruments are powered by what — and what still works if your vacuum pump or electrical system fails.

🛰️ IFR Navigation Equipment

📚 Ref: FAA-H-8083-15B, POH, AC 90-108

Your ability to fly IFR depends on accurate and legal navigation. Be prepared to explain:

🔹 VOR Systems

  • Line-of-sight radio navigation

  • Know how to interpret TO/FROM, radial tracking, and reverse sensing

  • Understand limitations (line-of-sight, cone of confusion, station passage)

🔹 Localizer (LOC) & ILS

  • High-sensitivity lateral/vertical guidance

  • Explain full vs half deflection, course sensitivity

  • Know how to identify failure or signal loss

🔹 GPS (IFR-Certified)

  • RAIM, database currency, OBS vs ENR mode

  • WAAS capability and LPV approaches

  • Know how to load, verify, and brief a GPS approach

🔹 ADF/NDB (if applicable)

  • Less common, but still tested

  • Know bearing interpretation and wind correction

🔹 Autopilot

  • Modes: NAV, HDG, APR, ALT hold

  • Limits: disengage altitude, workload management

  • Know how to identify a runaway or misconfiguration

💡 Angel Pro Tip: Practice loading and briefing instrument approaches on your avionics — your DPE may ask you to do this live during the oral.

⚠️ Instrument and NAV Failures to Know

Your DPE will ask: “What would you do if [this system] fails in IMC?”

Prepare for:

✅ Vacuum failure → Loss of AI and HI
 ✅ Pitot blockage → Inaccurate airspeed
 ✅ Static blockage → Erroneous VSI/Altimeter
 ✅ Electrical failure → Avionics, turn coordinator, pitot heat
 ✅ GPS loss → Use ground-based navigation or backup plan
 ✅ LOC failure → Go missed or request alternate approach

💡 Angel Tip: Don’t just memorize the failures — walk through how you’d detect them, confirm them, and fly the rest of the flight safely.

🧠 Questions You Might Get Asked

  • “How do you know if your attitude indicator fails?”

  • “What’s the difference between GPS OBS and ENR modes?”

  • “Can you fly an ILS if your localizer antenna fails?”

  • “How do you verify RAIM availability?”

  • “What instruments would still work after a vacuum failure?”

📚 Key References to Know

  • POH/AFM — Equipment specifics, system diagrams

  • FAA-H-8083-15B (IFH) — Instrument theory and limitations

  • AC 90-108 — Use of GPS for IFR operations

  • Instrument Rating ACS — Areas III and IV

🧾 Final Thoughts from Angel Aviation

Your instruments are your eyes in IMC — but only if you understand them. Whether it’s a frozen pitot tube or a failed localizer, staying ahead of the airplane means knowing your tools, their limitations, and how to adapt when they don’t cooperate.

This is more than systems knowledge — it’s about being the kind of instrument pilot who never flies into a situation they can’t handle.
